How does the safety device OPSO/UPSO work?

4. December 2017/in Gas Regulator, Gas Cylinder & more, General, LPG Everyday, LPG in Commerce, LPG in Private Housholds, LPG Knowledge

Inhaltsverzeichnis

  • OPSO function
  • UPSO function
  • Contracting a specialist
  • Image gallery
Approximate reading time: 2 minutes

If you are looking for the maximum safety level for the most important fitting for LPG systems, OPSO/UPSO should be a part of it. These are a combination of two safety devices with different operating principles. One offers protection from leaks, and the other protects against overpressure in the supply system.

First of all, the long form to explain the abbreviations:

  • OPSO means Over-Pressure Shut Off; it is freely translated as an overpressure closing unit.
  • UPSO means Under-Pressure Shut Off; it is the opposite part of the OPSO, i.e. a vacuum closing unit.

Both are safety devices that are integrated in special pressure regulator models from GOK. However, while the OPSO, previously known as an SAV (safety shut-off valve), may also be the sole safety device in the pressure regulator, the UPSO does not exist alone. This is because: It is combined with the OPSO.

OPSO function

As you can tell from the long form of OPSO, this safety device in LPG systems protects against dangerous overpressure. This means: If the outlet pressure of the pressure regulator exceeds a defined maximum, a locking mechanism blocks the gas flow. In this blog article, we have already described the OPSO (SAV) in more detail:

  What is an OPSO (SAV) and how does it work?

"<yoastmark

UPSO function

The gas flow is also shut off by the UPSO, but for a different reason. In order for the safety device to respond, the pressure produced downstream of the pressure regulator must be too low. This may be the case, for example, if an LPG line laid in the ground is severely damaged during construction work.

YouTube

By loading the video you accept YouTube’s privacy policy.
Learn more

Load video

The under-pressure shut-off safety device monitors the outlet pressure constantly, as does the OPSO.If the pressure drops below the defined minimum, the safety valve blocks the gas flow. The specialist can only release the pressure reducer once the cause of the vacuum has been detected and rectified – another similarity with the OPSO.

Contracting a specialist

Normally, you do not have to replace the pressure regulator if one of the two safety devices has responded – unless, of course, the pressure regulator is responsible for the malfunction itself.Therefore: Have the system inspected by a specialist. If the cause is not with the pressure regulator itself, the specialist fitter can quickly make the fitting ready for operation.

In summary, the combination of the two safety devices offers comprehensive protection, as neither over-pressure (OPSO) nor vacuum (UPSO) represent specific hazards, for example, due to contamination or line damage.

Image gallery

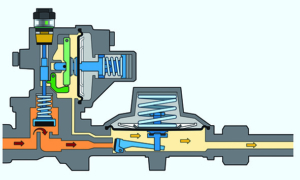

Normal operation of a pressure regulator with the combined safety device OPSO/UPSO.
Normal operation of a pressure regulator with the combined safety device OPSO/UPSO.
Overpressure is caused by dirt, for example. The OPSO/UPSO blocks the system before things get hairy at the consumer equipment.
Overpressure is caused by dirt, for example. The OPSO/UPSO blocks the system before things get hairy at the consumer equipment.
A leakage causes a vacuum. Here too, the OPSO/UPSO secures the system.
A leakage causes a vacuum. Here too, the OPSO/UPSO secures the system.
